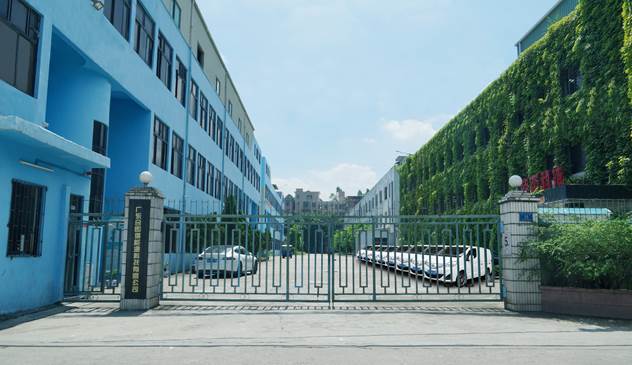

1 Company profile
Guangdong Hydrogen Energy Science and Technology Co., Ltd，situated at world most dynamical manufactory base Pearl River Delta area，is focus on the development and promotion of hydrogen conversion and aqueous energy application technology. Hydrogen energy is a sustainable resource and taking the Xianghua Aqueous scientific theory successfully develop a solution as a mobile charging system, which are world's cutting edge technology and with the products lines as high purity mobile hydrogen generator, fuel cell system, hydrogen backup power station, and etc. We provide environmental friendly power solutions in different areas. The company with a high-talented R&D team has developed an innovation and energy application solution., with more than 260 state patents, has a R&D and mass production base.
2 Introduction of GHEST’s Aqueous Hydrogen Series Products [Y1]
Aqueous hydrogen series products are energy efficient transform equipment[Y2] that based on the theory of aqueous hydrogen machine, and were researching, developing according to different energy application conditions. It includes Aqueous Hydrogen Charging Pile, Aqueous Hydrogen Main Power Supply for Base Station, Aqueous Hydrogen Fuel Cell, Mobile High Purity Hydrogen Making Machine, Aqueous Hydrogen Generator, Aqueous Hydrogen Electric Vehicle, Aqueous Hydrogen Charging Vehicle[Y3] , etc.
GHEST’s aqueous hydrogen products’ advantages
|
High energy efficiency |
•The using-efficiency is more than twice of traditional combustion engine; •The generating cost is just 1/3 of the gasoline generator; •Combined heat and power conversion rates of energy efficiency[Y4] can up to more than 80% |
|
Safety |
•Without the emission of such as SOx，NOX，PM2.5. •Carbon emission almost close to zero. •distributed hydrogen production[Y5] , no hydrogen storage, high safety. |
|
Portable and mobile |
•Small size, light, portable and high mobility. |
|
Quite |
•complete machine without any other moving parts except pump and air fan, voice frequency is within 55 decibels. |
|
Long life time and maintenance-free |
•Aqueous generator equipment continuous working life can reach more than 10,000 hours.[Y6] |

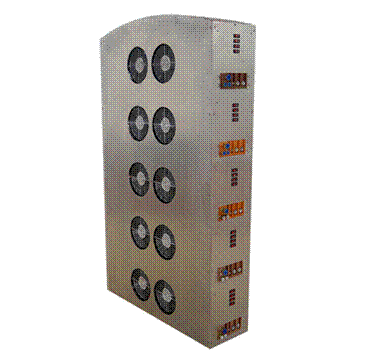

2.1 Aqueous Hydrogen Charging
Pile
Based on Aqueous Hydrogen Generator operating principle, Aqueous Hydrogen Charging Pile is an off-grid distributed power supply that is researched and developed for electric vehicle charging marketing requirement and technical requirement oriented. It can realize complementary energy with state electricity. Now charging pile products is 30KW and 60KW module.
product features
safety, environmental friendly, efficient and energy saving, low cost.
Application Conditions
Electric vehicle distributed off-grid charging service.
Specifications
|
Product Model |
MRFC-EV(30KW) |
|
Module power |
30KW |
|
Weight |
115KG |
|
Size |
1210*270*800mm |
|
Running Life |
≥10000h |
|
Communication Interface |
International standard |
|
Unit methanol generation capacity |
≥2.2Wh/g |
|
System Noise |
≤65dB |
|
Start-up Time |
Just-in-time |
|
Single Continuous Working Time |
≥72h |

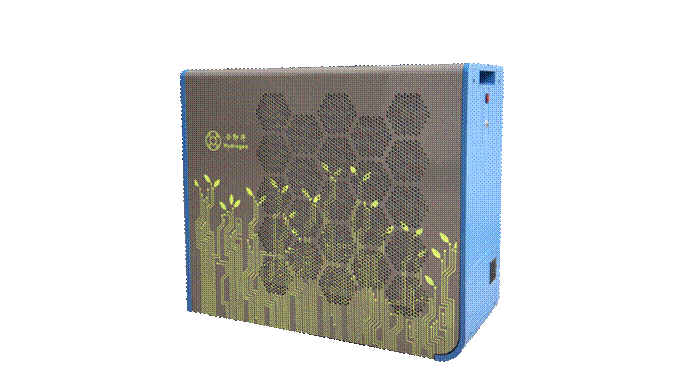

2.2 Aqueous
AIO Generator[Y7]
Aqueous Hydrogen AIO Generator is based on aqueous hydrogen fuel cell to generate electricity, composed of mobile hydrogen module, fuel cell module, control system module and power output module. It has the advantages of small size, high convenience, high efficiency (conversion rate can reach more than 80%), low noise and so on.
product feature
Small size, high convenience, safe and green, high performance and energy saving, modularized, mute and concise, remote intelligent operation[Y8] , electrical power stability.
EV charging[Y10] , home use or commercial power supply，Cogeneration service[Y11]
Specifications
|
Technical Name |
Parameter |
Technical Name |
Parameter |
|
Model |
MRFC-PS3 |
Power Generation of per unit Methanol |
≥2.2Wh/g |
|
Rated Power |
2.5KW |
System noise |
＜55dB |
|
Output Voltage |
48VDC/220VAC/380VAC |
Cold Start-up Time |
≤10min |
|
Weight |
25KG |
Hot Start-up Time |
≤1min |
|
Size |
590*590*220mm |
communication interface |
International standard |
|
Total Continuous Serving Time |
8000h |
Combined heat and power conversion rates of energy efficiency[Y12] |
＞80% |
2.3

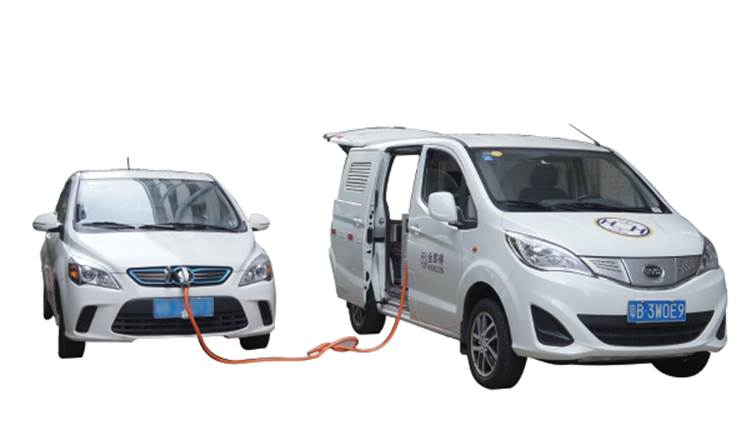

Aqueous Hydrogen Mobile Charging Vehicle
Aqueous Hydrogen Mobile Charging Vehicle can provide mobile charging service for electric vehicle in the service area with advantages such as would not increasing state-grid's burden, installing be off state grid, no pollution, while in the meantime of satisfying the requirement of full charging in an hour whenever and wherever possible
Product feature
High power, portable and removable, high environmental protection, high performance, low energy supplying time, long life.
Specifications
|
Module |
MCEV-T330 |
||
|
Input Voltage |
15~35V |
Output Voltage |
200-750VDC |
|
Quality Testing |
1 |
Output Power |
30KW,60KW,120KW |
|
Length |
4.3M |
Weight |
T3+400KG |
|
Height |
1.8M |
width |
2.06M |
|
Endurance Capacity |
≥1000KM |
|
|
